首頁 > 標準下載>ISO 14405-2-2018 產品幾何量技術規范(GPS)--尺寸公差--第2部分：除了線性尺寸或角度之外的尺寸 Geometrical product specifications (GPS) — Dimensional tolerancing — Part 2: Dimensions other than linear or angular sizes免費下載

ISO 14405-2-2018 產品幾何量技術規范(GPS)--尺寸公差--第2部分：除了線性尺寸或角度之外的尺寸 Geometrical product specifications (GPS) — Dimensional tolerancing — Part 2: Dimensions other than linear or angular sizes

標準類別：
標準大?。?/li>
標準編號：ISO 14405-2-2018
標準狀態：現行
更新時間：2024-01-22
下載次數：次

會員下載(8點)

VIP會員下載(0點)

游客掃碼下載(9點)

標準簡介

This document illustrates the ambiguity caused by the use of dimensional specifications to control
properties other than linear or angular size and the benefit of using geometrical specifications instead.
Dimensional tolerancing can be indicated by ± tolerancing or geometrical specifications.
The ambiguity caused by using ± tolerances for dimensions other than linear or angular sizes (for
individual tolerances and general tolerances according to, e.g. ISO 2768-1 and ISO 8062-3) is explained
in Annex A.
NOTE 1 The figures, as shown in this document, merely illustrate the text and are not intended to reflect
actual usage. The figures are consequently simplified to indicate only the relevant principles.
NOTE 2 For indications of dimensional specifications, see the following:
— ISO 14405-1 for linear size;
— ISO 14405-3 for angular size;
— ISO 2538-1 and ISO 2538-2 for wedges;
— ISO 3040 for cones.

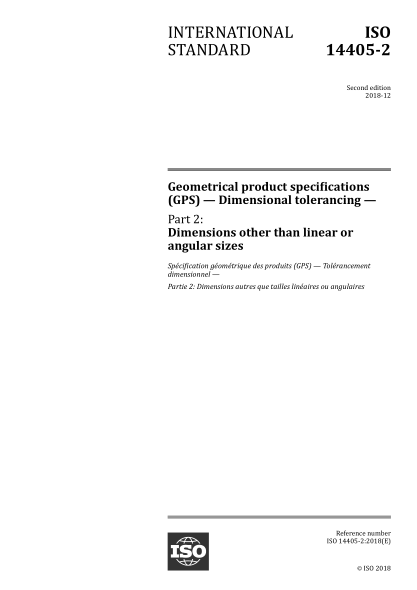

NOTE 3 The rules for geometrical specifications are given in ISO 1101.nd edition 2018-12 Geometrical product specifications (GPS) — Dimensional tolerancing — Part 2: Dimensions other than linear or angular sizes Spécification géométrique des produits (GPS) — Tolérancement dimensionnel — Partie 2: Dimensions autres que tailles linéaires ou angulaires Reference number ISO 14405-2:2018(E) ？ ISO 2018 ISO 14405-2:2018(E) COPYRIGHT PROTECTED DOCUMENT ？ ISO
