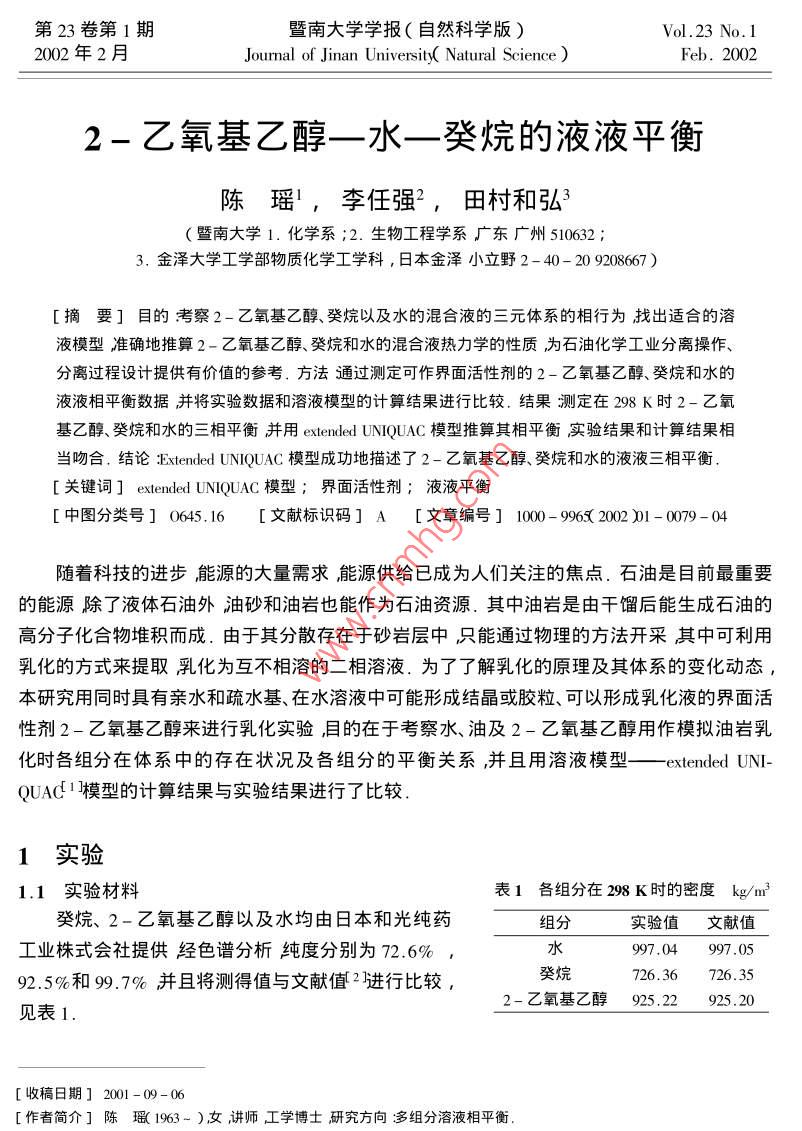

第23卷第1期暨南大學學報(自然科學版Vol 23 No. 12002年2月Journal of Jinan University( Natural ScienceFeb.20022-乙氧基乙醇一水—癸烷的液液平衡陳瑤1,李任強2,田村和弘(暨南大學1.化學系;2.生物工程學系廣東廣州5106323.金澤大學工學部物質化學工學科,日本金澤小立野2-40-209208667)[摘要]目的考察2-乙氧基乙醇、癸烷以及水的混合液的三元體系的相行為找出適合的溶液模型準確地推算2-乙氧基乙醇、癸烷和水的混合液熱力學的性質為石油化學工業分離操作分離過程設計提供有價值的參考.方法通過測定可作界面活性劑的2-乙氧基乙醇、癸烷和水的液液相平衡數據并將實驗數據和溶液模型的計算結果進行比較.結果測定在298K時2-乙氧基乙醇、癸烷和水的三相平衡并用 extended UNIQUAC模型推算其相平衡實驗結果和計算結果相當吻合,結論¨ xtended UNIQUAC模型成功地描述了2-乙氧基乙醇、癸烷和水的液液三相平衡[關鍵詞] extended UNIQUAC模型;界面活性劑;液液平衡[中圖分類號]0645.16[文獻標識碼]A[文章編號]1000-9962002)1-0079-04隨著科技的進步能源的大量需求能源供給已成為人們關注的焦點.石油是目前最重要的能源除了液體石油外油砂和油巖也能作為石油資源.其中油巖是由干餾后能生成石油的高分子化合物堆積而成.由于其分散存在于砂巖層中只能通過物理的方法開采其中可利用乳化的方式來提取乳化為互不相溶的二相溶液.為了了解乳化的原理及其體系的變化動態本研究用同時具有親水和疏水基、在水溶液中可能形成結晶或膠粒、可以形成乳化液的界面活性劑2-乙氧基乙醇來進行乳化實驗?zāi)康脑谟诳疾焖?、油?-乙氧基乙醇用作模擬油巖乳化時各組分在體系中的存在狀況及各組分的平衡關系,并且用溶液模型—— extended UNI-QUAC1模型的計算結果與實驗結果進行了比較.1實驗1.1實驗材料表1各組分在28K時的密度kg癸烷、2-乙氧基乙醇以及水均由日本和光純藥組分實驗值文獻值工業株式會社提供經色譜分析純度分別為72.6%,997,04997,0592.5%和997%并且將測得值與文獻值2進行比較,癸烷726.36726.35見表12-乙氧基乙醇925.22925.20[收稿日期]2001-09-06作者簡介]陳瑤(1963-)女講師工學博士研究方向多組分溶液相平衡暨南大學學報自然科學版)1.2實驗裝置及測定方法3組分的液液平衡是在溫度為(298.15±001壓力為常壓下進行,實驗裝置見圖1平衡玻璃瓶被放置在二次恒溫水槽中瓶?jī)?nèi)裝有50mL的3組分的混合液瓶頸部用干燥的氮?dú)饷芊庖苑乐钩睗?混合液被均勻地?cái)嚢?h靜置5h以確保達到良好的相分離然后分別從各相中取樣通過氣相色譜議測定樣品成分.詳細描述參見文獻3]中2結果與分析液液平衡的實驗結果見表2實驗數據描U:上相;S1S2:微量注射器繪在圖2.圖中所示分為3個區(相)I相為完L:下相;R:記錄儀全混合互溶1相區、Ⅱ相為液液2相區Ⅲ相W1,W2:恒溫水浴槽;C1,C2:熱控制儀;M.S:磁力攪拌器;D:平底玻璃瓶為乳化層3相區圖1液液平衡的實驗裝置圖表2在溫度298K時2-乙氧基乙醭1)癸烷2廂水3)三元體系的質量摩爾分?jǐn)?shù)上相中相下相0.00080.99890.00030.16010.04810.79180.04210.00230.95560.00120.99790.00090.20670.00000.79330.99300.00160.29040.00350.7060.02360.97600.00040.74740.00710.24550.02720.97190.00080.78180.01050.20770.05810.93960.00230.85360.04440.10210.12410.87370.00220.82440.13460.0410含有二元參數的 extended uNiQuac模型被用于推算實驗結果.完全混溶的二元組分的相互作用參數是通過回歸二組分氣液平衡實驗數據并且考慮氣相非理想性而加以修正后所得純組分的蒸氣壓是由 Antoine方程計算所得.修正的 Rackett方程4用于計算純液體的摩爾體積.第二vil系數通過 Hayden-0ome5來估計.純組分分子的體積和面積參數r和q均取于 Prausnitz etah6.在 extended UNAQUAC模型中,水癸烷和2-乙氧基乙醇的q分別為0.%6、1.43和0.92.部分互溶的二元組分的相互作用的參數7可通過聯立方程12解得(fix;)=(fx;)=(x:y∑x=∑x=∑x(1、、∥指三相)(2)第1期陳瑤等:2-乙氧基乙醇一水一癸烷的液液平衡表3給出了 extended UNAQUAC模型的二2-乙氧基乙醉元相互作用參數這些相互作用參數是通過把extended UNAQUAC模型作用于實驗的三元液0.2液平衡數據而獲得參數的詳細計算方法參見文獻8]這些相互作用參數用于推算三組分的液液三相平衡6表3 extended UNAQUAC模型的回歸結果體系2-乙氧基乙醇+癸烷454.77899.232-乙氧基乙醇+水癸烷+水2599.00水質量摩爾分?jǐn)?shù)癸烷圖2給出了實驗結果與 extended UNQUAC模型的計算結果的比較從圖中可看圖2三元組分2-乙氧基乙醇癸烷和水的相圖岀 extended UNIQUAC模型的推算結果和實驗結果是很一致的.從而也說明了實驗結果的準確度高.水、油、界面溶化劑的溶解度和相分離現象對石油開采提供了基礎數據,為工業分離提取裝置的設計提供了有價值的參考[參考文獻][ 1] NAGATA L. Modified of the extended UNIQUAC model for correlating quaternary liquid-liquid equilibria data[ J]Fluid Phase Equilibria, 1990, 54: 191-206[2] RIDDICK J A, BUNGER W B, SAKANO T K. Organic Solvents[ M ]. 4nd ed, New York: Wiley Interscience1986[3] CHEN Y, TAMURA K, YAMADA T. Quaternary( liquid liquid )equilibria for water+ ethanol tolueneI 1-dimethylethyl methyl ether or 1, 1-dimethylpropyl methyl ether )at the temperature 298.15 K[J ]. JChemThermodynamics, 2000, 32: 1597-1605[ 4] SPENCER C F, DANNER R P. Improved equation for prediction of saturated liquid density[ J ]. J Chem Eng Data1972,17:236-241[5] HAYDEN JG, O CONNELL J P. A generalized method for predicting second virial coefficient[ J ] Ind Eng ChemProcess Des Dev 1975 14: 209-216[6] PRAUSNITZ J M, ANDERSON T F, GRENS E A, et al. Computer Calculations Formulticomponent Vapor-Liquidand Liquid-Liquid Equilibria[ M ]. Prentice-Hall Englewood Cliffs, NJ, 1980[7] TAMURA K, CHEN Y, TADA K, et al. Representation of Multicomponent liquid- liquid equilibria for aqueous andrganic solutions using a modified UNIQUAC model[ J ]. J Sol Chem 2000, 25): 463-488[8] TAMURA K, CHEN Y, TADA K et al. Liquid-liquid equilibria for quaternary mixtures of water, ethanol, and 22 A-trimethylpentane with fuel additives[ J ] Fluid Phase Equilibria, 2000,171:115-126暨南大學學報自然科學版)Liquid-liquid equilibria for mixtures of waterdecane and 2-ethoxyethanolchen Yao, LI Ren -giang, Kazihiro Tamura2. Dept. of Biotechnology Jinan University Guangzhou 510632, China3. Dept. of Chemistry and Chemical Engineering Kanazawa University 2-40-20 Kanazawa, Ishikawa 920-8667, JapanAbstract Aim: Using an extended UNIQUAC model to study the phase behaviors and predict thethemodynamic characteristics of the liquid- liquid equilibria( LLE )for ternary mixtures of 2ethoxyethanol water and decane. Methods: By the studies of the Lle of 2-ethoxyethanol water anddecane the phase behaviors were better understood. Experimental results were compared with those ofextended UNIQUAC model. Experimental data of ternary LLE for the mixtures of 2-ethoxyethanol,waterand decane were studied at 29815K. Extended UNIQUAC model was empolyed to predict the lle dataResults: Experimental results are in agreement with the calculated results. Conclusion LLE data for theternary system 2-ethoxyethanol, water and decane were successfully predicted with the extended UNIQUAC model. These experimental results are very useful for separation and extraction process designL Key words extended UNIQUAC model surfactant; ternary liquid -liquid equilibria
