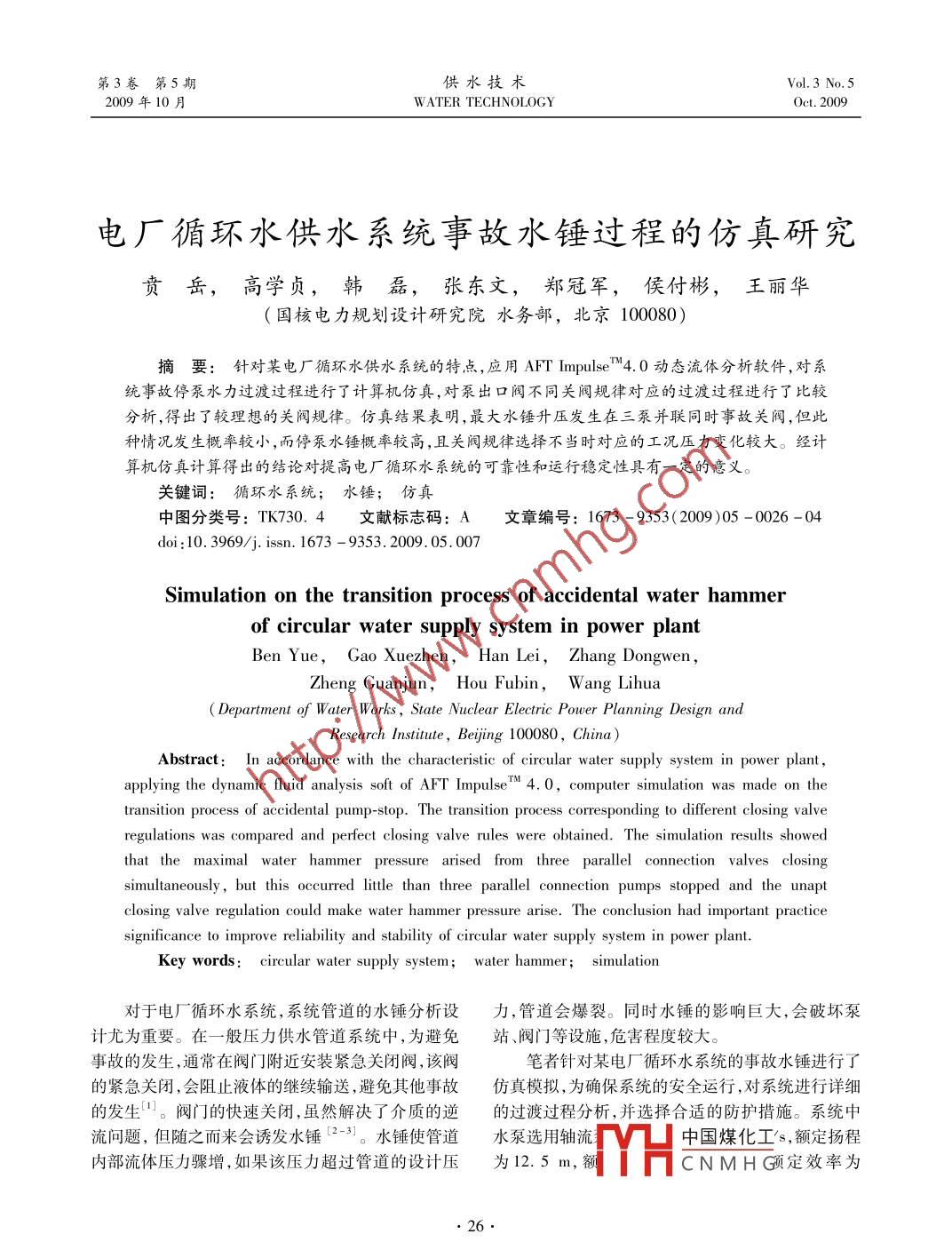

第3卷第5期供水技術Vol.3 No.52009年10月WATER TECHNOL0GYOct. 2009電廠循環水供水系統事故水錘過程的仿真研究賁岳，高學貞，韓磊，張東文，鄭冠軍，侯付彬，王麗華(國核電力規劃設計研究院水務部，北京100080)摘要:針對某電廠循環水供水系統的特點,應用AFT Impulse"M4.0 動態流體分析軟件,對系統事故停泵水力過渡過程進行了計算機仿真,對泵出口閥不同關閥規律對應的過渡過程進行了比較分析,得出了較理想的關閥規律。仿真結果表明,最大水錘升壓發生在三泵并聯同時事故關閥,但此種情況發生概率較小，而停泵水錘概率較高,且關閥規律選擇不當時對應的工況壓力變化較大。經計算機仿真計算得出的結論對提高電廠循環水系統的可靠性和運行穩定性具有一定的意義。關鍵詞:循環水 系統;水 錘;仿真中圖分類號: TK730. 4文獻標志碼: A文 章編號: 1673 - 9353(2009 )05 -0026 -04doi:10. 3969/j. issn. 1673 - 9353.2009. 05. 007Simulation on the transition process of accidental water hammerof circular water supply system in power plantBen Yue，Gao Xuezhen ,Han Lei，Zhang Dongwen,Zheng Guanjun，Hou Fubin，W ang Lihua( Department of Water Works ，State Nuclear Electric Power Planning Design andResearch Institute, Beijing 100080, China )Abstract: In accordance with the characteristic of circular water supply system in power plant,applying the dynamic fluid analysis soft of AFT Impulse' M 4. 0, computer simulation was made on thetransition process of accidental pump-stop. The transition process corresponding to diferent closing valveregulations was compared and perfect closing valve rules were obtained. The simulation results showedthat the maximal water hammer pressure arised from three parallel connection valves closingsimultaneously, but this occurred little than three parallel connection pumps stopped and the unaptclosing valve regulation could make water hammer pressure arise. The conclusion had important practicesignifcance to improve reliability and stability of circular water supply system in power plant.Key words: circular water supply system; water hammer; simulation對于電廠循環水系統，系統管道的水錘分析設力,管道會爆裂。同時水錘的影響巨大,會破壞泵計尤為重要。在一般壓力供水管道系統中,為避免站閥門等設施,危害程度較大。事故的發生,通常在閥門]附近安裝緊急關閉閥,該閥筆者針對某電廠循環水系統的事故水錘進行了的緊急關閉,會阻止液體的繼續輸送,避免其他事故仿真模擬,為確保系統的安全運行,對系統進行詳細的發生”。閥門的快速關閉,雖然解決了介質的逆的過渡過程分析,并選擇合適的防護措施。系統中流問題，但隨之而來會誘發水錘[12- 3。水錘使管道水泵選用軸流中國煤化I's,額定揚程內部流體壓力驟增,如果該壓力超過管道的設計壓為12.5 m，MHCNMH G頓定效率為●26●2009年10月賁岳,等:電廠循環水供水系統事故水錘過程的仿真研究第3卷第5期88%,機組轉動慣量為7300kg●m',泵出口閥選用基本一致,均是從穩態壓力降低后逐漸升高到一定可控液控蝶閥。壓力再波動降低,直至為零。同時也可以看出隨著1事故停泵過渡過程計算機仿真關閥時間的延長,閥門后壓力變化幅度減小,在快關采用AFTImpulse'M4.0流體分析軟件對事故5s,慢關55s的工況下壓力變化幅度最小，僅升高水錘情況進行了分析,結合該循環水供水系統的實到0. 164 MPa, 而快關2 s慢關6s和快關2 s慢關8際情況,分別對三泵并聯運行中- -臺事故斷電停泵、s的工況下，閥門后壓力均升至0.18 MPa。雖然快兩臺同時事故停泵及三臺同時事故停泵的過渡過程關5s,慢關55s的工況下壓力變化幅度最小，但是進行計算機仿真,得出過渡過程中的泵組最不利參從圖中可以看出,三種工況下隨著關閥時間的延長數。對于事故水錘采取兩階段關閥進行考察,即快水泵倒轉較嚴重,最大反轉速度分別是額定轉速的關75° ,慢關15°1.1,1.26和1.7倍,過大的反轉速度直接導致水泵1.1一臺事故斷電停泵的損壞，一般水泵允許反轉速度是額定轉速的1.2三泵并聯一- 泵事故停泵的計算機模擬結果如圖倍左右。因此，三泵并聯一臺事故停泵的工況下,閥1至圖3,從圖中可以看出關閥后壓力曲線變化趨勢門要在10s內關閉,以保證水泵不被損壞。0.20 t800.15， 6C400.05of-2010 1s2010Time/seca.壓力變化泵轉速變化圖1快關2 s,慢關6 s時的仿真結果Fig.1 Results of simulation at 2 s fast close and 6 s slow close0.20 r100604C0.1020-01:-40515Time/secondsb.泵轉速變化圖2快關2s,慢關8s時的仿真結果Fig.2 Results of simulation at 2 s fast close and 8 s slow close1.2 兩泵同時事故斷電停泵度減小,15 s關閥時的壓力值即降為0.15 MPa。進兩泵同時事故斷電停泵過渡過程的計算機仿真-步延長關閥時間,水泵開始出現倒轉情況,在快關結果如圖4、圖5所示。5s,慢關20s的工況下,壓力變化幅度增大，此時閥從圖4可以看出,15 s內將閥門關閉,水泵不會門后壓力可升高到0.171 MPa,水泵最大反轉速度出現倒轉情況,但過短的關閥時間導致閥門后壓力是額定轉速的1.18倍。因此,三泵并聯兩泵事故停驟然升高,可達到1.08 MPa。試驗中發現,適當延泵的情況下,中國煤化工曼關10s為長關閥時間,例如快關5 s,慢關10s時,壓力升高幅宜。YHCNM HG.27.第3卷第5期供水技術2009年10月0.20↑10080多500.15 I40-0.10of-200.05-40-60--80L2006(8(0.00406CTime/secondsa.壓力變化b.泵轉速變化圖3快關5 s,慢關55 s時的仿真結果Fig.3 Results of simulation at5 s fast close and 55 s slow close1.580 |g 1.050 F言0.552(1015圖4快關2s,慢關6s時的仿真結果Fig.4 Results of simulation at 2 s fast close and 6 s slow close0.20 t00 r0.15-soA. 20? 0.05304(Time/sconds圖5 快關5 s,慢關20 s時的仿真結果Fig.5 Results of simulation at5 s fast close and 20 s slow close1.3 三泵同時事故斷電停泵力分別為0.148,0. 156和0.167 MPa,而三種工況兩階段關閥壓力變化情況如圖6至圖8所示。下泵開始倒轉的時間分別為41.1,41.8和42.4 s,考察了4種工況下的壓力變化:①快關5 s,慢關55最大反轉速度分別是額定轉速的1. 138,1.14和1.s;②快關10 s,慢關50 s;③快關15 s,慢關45 s;④143倍。適當延長關閥時間，如圖8可知,快關10快關10s,慢關90s。從圖7至圖9可以看出,控制s,慢關90s的中國煤花土0.122 MPe，閥門關閉時間為60 s,隨著慢關時間的減少,壓力升比60s最佳工CHCNMH G .降幅度增強,慢關時間為55,50和45s時的最大壓一步降低了水錘止力的地告.28.2009年10月賁岳,等:電廠 循環水供水系統事故水錘過程的仿真研究第3卷第5期0.20 t100卜8C0.15 |600.10 t40t 20(02080-2054(Time/sa.壓力變化、lime/secondsb.泵轉速變化圖6快關5 s,慢關55 s時的仿真結果Fig.6 Resuls of simulation at 5 s fast close and s5 s slow elose100E 0.150.10i 0.0250。Time/seconds圖7快關 15 s,慢關45 s時的仿真結果Fig.7 Reults of simulation at 15 s fast elose and 45 s slow closeg 0.20t0.154f尋0.055150Time/seconds2.0圖8快關10s,慢關90 s工況下的壓力變化曲線圖9三泵并聯瞬間關閥壓力變化 曲線Fig.8 Pressure variation at 10 s fast close and 90 s slow closeFig.9 Instaant closed valve pressure variation curve at three1.4三泵并聯突然關閥parallel connection pumps work condition三泵并聯閥門]突然損壞關閉的壓力變化情況如②多泵并聯使用時,其中幾臺泵事故停泵時圖9所示,從圖可知閥i ]的瞬時關閉,造成管道內壓要合理控制關閥時間，以防止水泵過量倒轉損壞水力變化增幅較大,最大壓力為4.54 MPa。而實際上泵。多泵同時事故停泵時水錘壓力較大,適當延長閥門不可能突然關閉,總有一定的歷時,其水錘現象關閥時間可以減弱水錘壓力波動值。比突然關閉情況要復雜得多,但上述水錘波傳播和③突然關閥時壓力驟然升高,對系統損壞較反射的規律仍然適用。大,因此閥門要經常檢修,以防止關閥水錘的發生。2結論參考文獻:①水泵出口閥的關閉特性直接影響管道系統[1] Wylie EBStreeler VL.瞬變流[M].清華大學流體傳中的水錘壓力,可以通過合理確定水泵出口可控閥動與控制教研組譯北京.水利水由出版社,1987.的關閥程序有效地控制事故停泵水力過渡過程,避中國煤化工免系統中出現過大或過小的水錘壓力。收稿日期:20MYHCNMH G●29.
