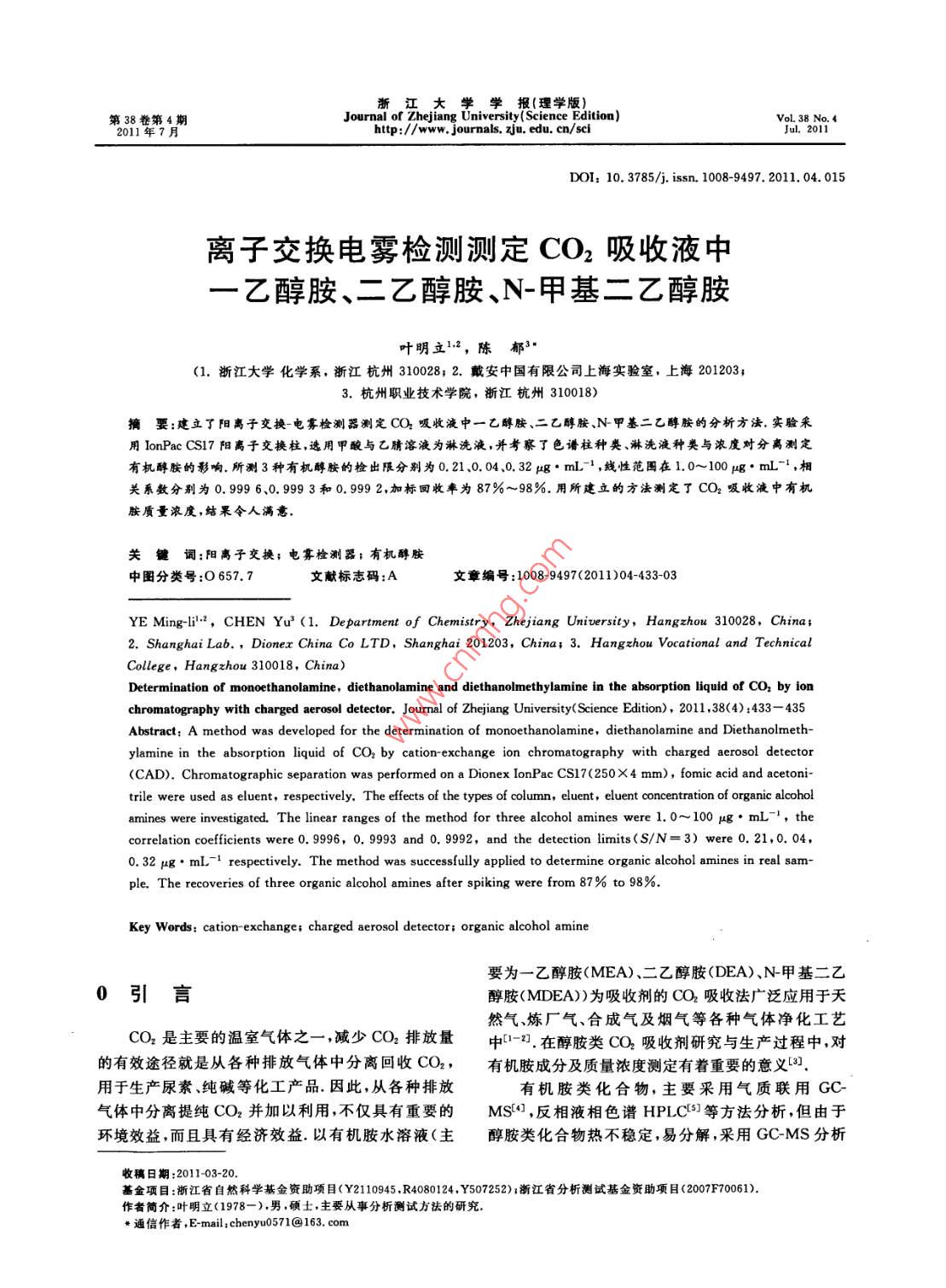

第38卷第4期Jon五聲n筆m學學圖uo2011年7月http://www.journalszju.educn/sciDOI:10.3785/j.issn.1008-9497.2011.04.015離子交換電霧檢測測定CO2吸收液中乙醇胺、二乙醇胺、N-甲基二乙醇胺葉明立12,陳郁3(1.浙江大學化學系,浙江杭州310028;2.戴安中國有限公司上海實驗室,上海2012033.杭州職業技術學院,浙江杭州310018)犢要:建立了陽離子交換-電霧檢測器測定CO吸收液中一乙醇胺、二乙醇胺、N甲基二乙醇胺的分析方瀆,實驗采用 Ion Pac CS17陽離于交換柱,選用甲酸與乙腈溶液為淋洗液,并考察了色譜柱種類、淋洗液種類與濃度對分離測定有機醇胺的影響.所測3種有機醇胺的檢出限分別為0.21、0.04、0.32gg·mL,線性范圍在1.0~100gg·mL-',相關系數分別為0.9996、0.9993和0.9992,加標回收奉為87%~98%.用所建立的方法測定了CO2吸收液中有機胺質量濃度,結果令人滿意關鍵詞:陽離子交換;電霧檢測器;有機醇胺中圖分類號:O657.7文獻標志碼:A章編號:10089497(2011)04-433-03YE Ming-li 2, CHEN Yu(1. Department of Chemistry, Zhejiang University, Hangzhou 310028, China;2. Shanghai Lab, Dionex China Co LTD, Shanghai 201203, China: 3. Hangzhou Vocational and TechnicalCollege, Hangzhou 310018, China)Determination of monoethanolamine, diethanolamine and diethanolmethylamine in the absorption liquid of CO, by ionhromatography with charged aerosol detector. Journal of Zhejiang University( Science Edition), 2011, 38(4): 433-435Abstract: A method was developed for the determination of monoethanolamine, diethanolamine and Diethanolmethylamine in the absorption liquid of CO by cation-exchange ion chromatography with charged aerosol detector(CAD). Chromatographic separation was performed on a Dionex Ion Pac CS17(250X 4 mm), fomic acid and aceton-trile were used as eluent, respectively. The effects of the types of column, eluent, eluent concentration of organic alcoholamines were investigated. The linear ranges of the method for three alcohol amines were 1.0100 ugcorrelation coefficients were 0. 9996, 0. 9993 and 0. 9992, and the detection limits(S/N=3)were 0. 21, 0.040. 32 ug.mL I respectively. The method was successfully applied to determine organic alcohol amines in real sam-ple. The recoveries of three organic alcohol amines after spiking were from 87% to 98%Key Words: cation-exchange charged aerosol detector; organic alcohol amine要為一乙醇胺(MEA)、二乙醇胺(DEA)、N甲基二乙0引言醇胺(MDEA))為吸收劑的CO2吸收法廣泛應用于天然氣、煉廠氣、合成氣及煙氣等各種氣體凈化工藝CO2是主要的溫室氣體之一,減少CO2排放量中1-2).在醇胺類CO2吸收劑研究與生產過程中,對的有效途徑就是從各種排放氣體中分離回收CO2,有機胺成分及質量濃度測定有著重要的意義用于生產尿素純堿等化工產品.因此,從各種排放有機胺類化合物,主要采用氣質聯用GC氣體中分離提純CO2并加以利用,不僅具有重要的MS4,反相液相色譜HPLC5等方法分析,但由于環境效益,而且具有經濟效益,以有機胺水溶液(主醇胺類化合物熱不穩定,易分解,采用GCMS分析收稿日期:2011-03-20.基金項目:浙江省自然科學基金資助項目(Y2110945R4080124Y507252);浙江省分析測試基金資助項目(2007F70061)作者簡介:葉明立(1978-),男,碩士,主要從事分析測試方法的研究通信作者,E-mail:chenyu57@163.com434浙江大學學報(理學版)第38卷不是太適合;而在反相液相色譜柱上,醇胺類保留很2.2乙腈體積分數對分離的影響弱,需要進行復雜的衍生才能進行測定有機胺具有一定的疏水性,加入有機溶劑可減電霧檢測器(CAD)是新型通用型檢測器81,少有機胺與固定相疏水表面的吸附作用,改善峰形色譜淋洗液及被分析物經霧化器霧化,其中分析物與分離度,在流速恒定情況下,通過5%、10%、液滴在室溫下干燥形成溶質顆粒,與帶正電荷的氮15%、20%和30%等不同體積分數乙腈作對比實氣顆粒反向相遇,經碰撞使溶質顆粒帶上正電,用檢驗.發現適度增加乙腈的體積分數,可以改善峰型,測器測出帶電溶質的信號電流,由此產生的信號電提高塔板數,但對3種有機胺出峰時間影響不大.在流與溶質的質量濃度呈正比.CAD可實際應用于任流動相中加入體積分數為10%乙腈較適宜何非揮發或半揮發化合物的分析檢測.2.3甲酸體積分數對分離的影響本方法根據MEA、DEA、MDEA的理化性質,陽離子交換分離機理中,淋洗液離子體積分數越采用陽離子交換色譜柱9-10分離、CAD電霧檢測器高淋洗液從固定相置換溶質離子越有效溶質離子測定CO2吸收液中醇胺類化合物,結果令人滿意的洗脫時間越短.在流速、乙腈體積分數恒定情況下,改變甲酸體積分數0.02%、0.05%、0.1%、0.2%1材料與方法0.3%作對比試驗甲酸體積分數在0.1%時,3種有機胺達到完全分離,且出峰時間比較適宜1.1儀器與試劑2.4線性關系、線性范圍及檢出限Dionex ics-5000色譜儀(美國戴安公司),配用標準品配制7種不同質量濃度的混合標準溶PEEK泵, Chromeleon色譜工作站; CORONA UL-液MEA、DEA與MDEA質量濃度分別為1.0、TRA電霧檢測器;AS自動進樣器2.0、5.0、10.0、20.0、50.0、100g·mL1,對上述乙醇胺(MEA)、二乙醇胺(DEA)、N甲基二溶液各測定3次后,取其峰面積的平均值,以峰面乙醇胺(MDEA),均為分析純試劑購自上海醫藥積為縱坐標,標準液質量濃度為橫坐標建立標準工集團有限公司,實驗用水為超純水作曲線,3種物質的線性回歸方程如表1所示.可以1.2色譜條件看出,3種物質在1.0~100g·mL時峰面積與質量采用 Ion Pac CG17(50mm×0.4mm)保護柱和濃度呈線性響應,相關系數為0992~0.9996.以信IonPac CS17(250mm×0.4mm)分離柱.流動相為噪比(S/N)為3計算檢出限,MEA、DEA、MDEA的V(乙腈):V(甲酸)=10:90等度淋洗流速為檢出限分別為0.21、0.04、0.32四g·mL1.1.4mL·min-';進樣體積5μL,柱溫30℃表1方法的線性關系電霧檢測器參數:氮氣壓力24kPa;霧化溫度Table 1 Aggression equation of the analyte determined25℃;檢測范圍設置為100pA被測物回歸方程線性范圍Analyte regression equation相關系數r(pg·mL-1)2結果與討論Linear rangeMEAY=0.02682.1色譜柱的選擇X-0.00020.99961.0~100MEA、DEA、MDEA在酸性情況下均以陽離子Y=0.0991DEA0.99931.0~1的形式存在,但也表現一定的疏水性.因此采用陽離X-0.0008子交換機理與反相機理相結合的混合基質色譜柱對MDEAY=0.03110.9992X+0.00131.0~1其進行分離選擇 Acclaim WCX-1柱、 Acclaim Trinity P1it Y peak area: X, mass concentration of analyte, Hg. mL-I柱和 Ion Pac CS17柱作為分離柱進行實驗. Acclaim2.5重現性WCX-1柱流失比較嚴重,CAD檢測器背景噪音達吸取MEA、 DEA MDEA質量濃度為50g·m1到50pA,不適合用于該方法 Acclaim Trinity P1的混合標準溶液,重復進樣11次,記錄色譜圖(見圖柱,CAD檢測器背景噪音<5pA,但調整流動相仍1).它們保留時間的相對標準偏差分別為0.04%無法使3種有機胺達到基線分離. IonPac CS17柱0.03%、0.08%,峰面積的相對標準偏差分別為對3種有機胺保留合適,且背景噪音<5pA.因此,1.21%、0.81%、0.61%,峰高的相對標準偏差分別選擇 Ion Pac cs17柱作為分離柱為1.60%、0.61%、1.29%,重現性較好第4期葉明立,等:離子交換電霧檢測測定CO2吸收液中一乙醇胺、二乙醇胺、N甲基二乙醇胺4351003結論本方法采用陽離子色譜法電霧檢測器測定00CO2吸收液中的有機胺,進一步優化了分離條件,在等淋洗條件下分離一乙醇胺、二乙醇胺、N甲基001020304050600809010二乙醇胺.在此色譜條件下,一乙醇胺、二乙醇胺圖1標準溶液的色譜圖N甲基二乙醇胺有較好的線性和重現性以及較為Fig 1 Chromatogram of standard solution理想的檢測下限,也解決了部分有機胺電導響應靈1;MEA(50·mL-1),2;DEA(5rg·mL-1),3:MDEA敏度不高等問題,可以應用于CO2吸收液實際樣品的測定2.6樣品測定及回收率樣品稀釋100倍,經過0.22gm濾膜過濾后,參考文獻( References)按“1.2”節色譜條件進行測定,外標法定量,其分析結果見表2.為確保檢驗方法的準確性,在原樣品中[1] LIN Po-hsun, KO Chih-chiang, LI Meng-hui. Ternary加人3個不同質量濃度標準工作溶液,經過同樣的diffusion coefficients of diethanolamine and N-methyl樣品前處理步驟,進行加標回收試驗,回收率結果見diethanolaminein aqueous solutions containing dieth-表2結果表明該方法符合樣品分析的要求樣品色nolamine and N-methyldiethanolamine[J]. Fluid PhaseEquilibria,2009,276:69-74譜圖如圖2所示表2原樣品中MEA、DEA、MDEA的質量濃度及[2] VAIDYA P D, KENIG E Y. Absorption of CO2inoaqueous blends of alkanolamines prepared from renew-回收率測定結果able resources[J]. Chemical Engineering Science,2007Table 2 Contents and Recoveries of organic62(24):7344-7350Amine in the samples[3] HARTONO A, HALL VARD F. Kinetics reaction of被測物試樣質量加入標樣量加標后總質量回收率primary and secondary amine group in aqueous solution濃度 Content Sample added濃度 Content recoveAnalyteof diethylenetriamine (DETA) with Carbon Dioxide/(mg·mL-1)/(mg·mL-1)/(mg·mL-1)/%[J]. Svendsen Energy Procedia, 2009, 1(1): 853-85993.0[4]余孔捷,黃杰,楊方.氣相色譜內標法測定食品加工助97.1劑三乙醇胺中單乙醇胺、二乙醇胺[].食品工業科技DEA0.2750.76YU Kong-jie, HUANG Jie, YANG Fang. Determina0.50tion of monoethanolamine and diethanolamine in foodprocessing aids trolamine by GC internal standardMDEAmethod[J]. Science and Technology of Food Industry2008,8(29):281-281090.5[5]何文遠,楊海真,顧國維反相高效液相色譜分析有機12.9587.0液肥中腐胺、亞精胺、精胺含量[J].中國土壤與肥料200HE Wen-yuan, YANG Hai-zhen, GU Guo-wei. Determination of the content of putrescine, spermidine and per-mine in liquid organic fertilizer by RP-HPLCLJJ. Soil andFertilizer Sciences in China. 2008. 3: 83-86.[6] ZHANG Ke, DAI Lu-lu, CHETWYN N P Simulta001.020304.05.06.07.0809010.0neous determination of positive and negative pharma-ceutical counterions using mixed-mode chromatography圖2實際樣品的色譜圖coupled with chargeddetector[J]. Jof Chro-Fig 2 Chromatogram of a samplematography A,2010,12l7:5776-5784.1, MEA, 2, Dea, 3: MDEA(下轉第488頁)488浙江大學學報(理學版)第38卷graphic and electromyographic signals during incre-[15]宋超,王健方紅光間斷遞增負荷條件下肌肉活動的mental cycle ergometry[J]. J Electro Kinesiol, 2001力電關系[J.體育科學,2006,26(3):50-5211:299—305.SONG Chao, WANG Jian, FANG Hong-guang. The[11] HENNEMAN E, OLSON C B. Relationsrelationship between sEMG parameters and the forcestructure and function in the design of skeletallevels during step contractions of biceps brachii in[J. J Neurophysiol, 1965, 28: 581-59non-fatigue state [J]. China Sport Science, 2006, 26[12] HAGBERG M, ERICSON B E. Myoelectric power(3):50-52spectrum dependence on muscular level of elbow flex-[16]宋超,王健樓蘭萍連續遞增負荷條件下肌肉活動的ors[J]. Eur J Appl Physiol, 1982, 48: 147-150力-電關系[J中國應用生理學雜志,2010,26(1):97[13] SZEPFALUSY P, GYORGY G. Entropy decay as ameasure of stochasticity in chaoticsy stems[J]. PhysSONG Chao, WANG Jian, LOU Lan-ping. TheRevA,1986,33(4):2852-2855.sEMG-force relationship during ramp contractions of[14]王健,方紅光,楊紅春.運動性肌肉疲勞的表面肌電非biceps brachii in non-fatigue exercises[J]. Chinese J線性信號特征[].體育科學,2005,25(5):39-43of Applied Physiology, 2010, 26(1):97-101.WANG Jian, FANG Hong-guang, YANG Hong- [17] KASPAR F, SCHUSTER H G. Easily calculableIgnal characteracemeasure for the complexity of spatiotemporal paRernsmyography of exercise muscle fatigue[J]. China Sport[J]. Physical Review A, 1987, 36(2)1842-848Science,2005,25(5):39-43(責任編輯涂紅)(上接第435頁)[7] HOLZGRABEA U, NAPB C J, ALMELINGB S38(8):1191-1194.Control of impurities in l-aspartic acid and H-alanine byKONG Lu-lu, GUO Xiao-yan, ZHOU Qi-xing. Impacthigh-performance liquid chromatography coupled with aof eluent concentration on resolution of low molecularcorona charged aerosol detector]. J of Chromatogra-weight aliphatic amine at low levels by lon chromatog-phyA,2010,1217:294-301.raphyLJ]. Chinese J of Analytical Chemistry, 2010, 38[8]郭慧麗魏瑞萍,梅興國.高效液相色譜電霧檢測法測(8):1191-1194定兩性霉素B脂質體中磷脂含量[].中國醫院藥學雜[10]陳永欣,施青紅,葉明立,等自制陽離子色譜柱測定有志,2008,28(23):2053-2055機胺[].浙江大學學報:理學版,2005,32(4):415GUO Hui-li, WEI Rui-ping, MEI Xing-guo. Determination of phospholipid in mphotericin B liposome byCHEN Yong-xin, SHi Qing-hong, YE Ming-li, et alIPLC-charged aerosol detection (CAD)[J].ChineseSelf-prepared cation-exchange column for the separaHospital Pharmacy J, 2008, 28(23): 2053-2055tion of amines[J]. J of Zhejiang University: Science E[9]孔露露,郭曉燕,周啟星.淋洗液濃度對痕量低分子量dition,2005,32(4):415-418.脂肪族胺離子色譜分離度的影響[].分析化學,2010(責任編輯涂紅)
